WEB Catalog

Product Information ?  WEB Catalog  ? Vacuum Equipment (Vacuum Generators/Vacuum Suction Cups/Other)  ? Air Suction Filters

Air Suction Filters

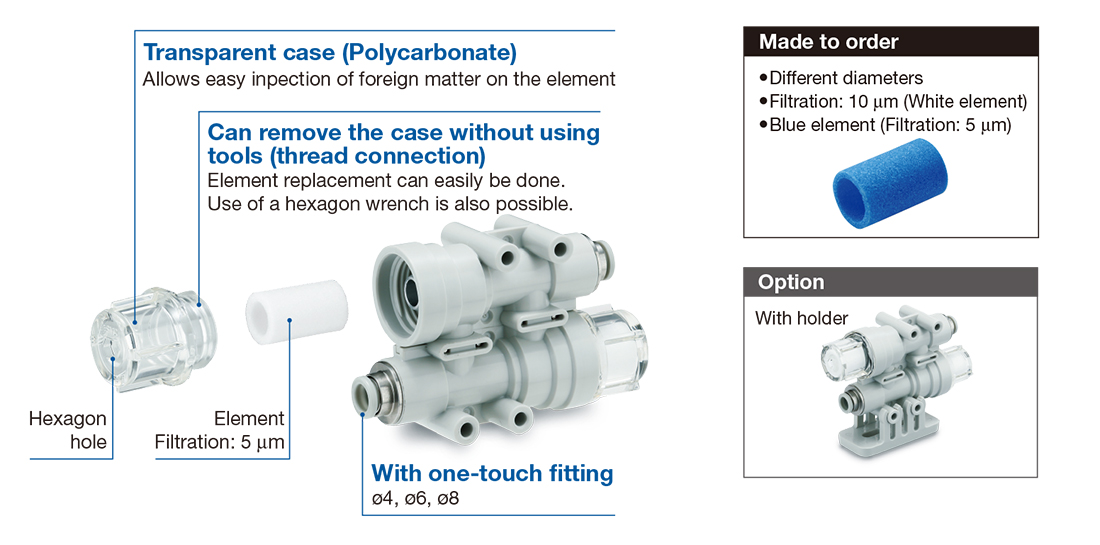

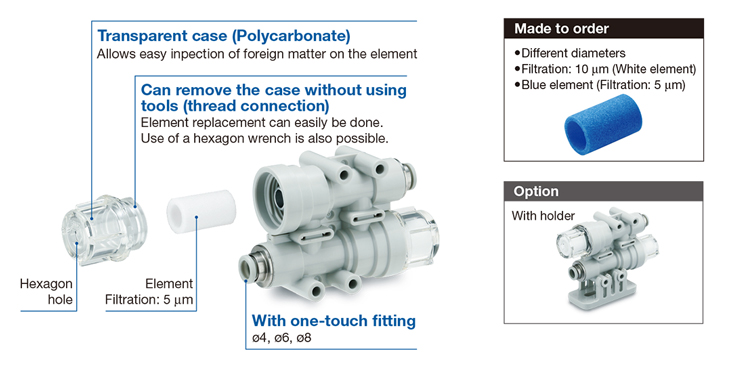

In-line Air Filter ZFD

    ?Operating pressure range: ?100 kPa to 0.5 MPa
    ?Able to capture foreign matter in both vacuum adsorption and vacuum
    　release directions, Prevents foreign matter from scattering again
    ?Space saving
    　Installation area: 41% reduction
    ?Check valve enclosure
    　Flow order: Filter?Check valve
    　Prevents foreign matter from getting caught in the check valve
    ?Applicable tubing O.D.: ?4, ?6, ?8
SeriesApplicable tubing O.D. MetricOperating pressure range [kPa]Vacuum release pressure [MPa]Weight [g]
ZFD53?4?100 to 00.5 or less34
ZFD54?6?100 to 00.5 or less33
ZFD55?8?100 to 00.5 or less35

Features

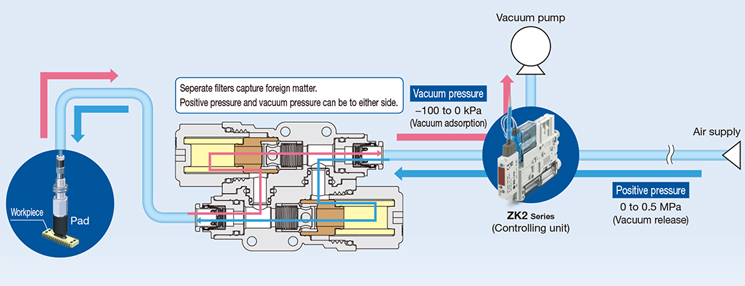

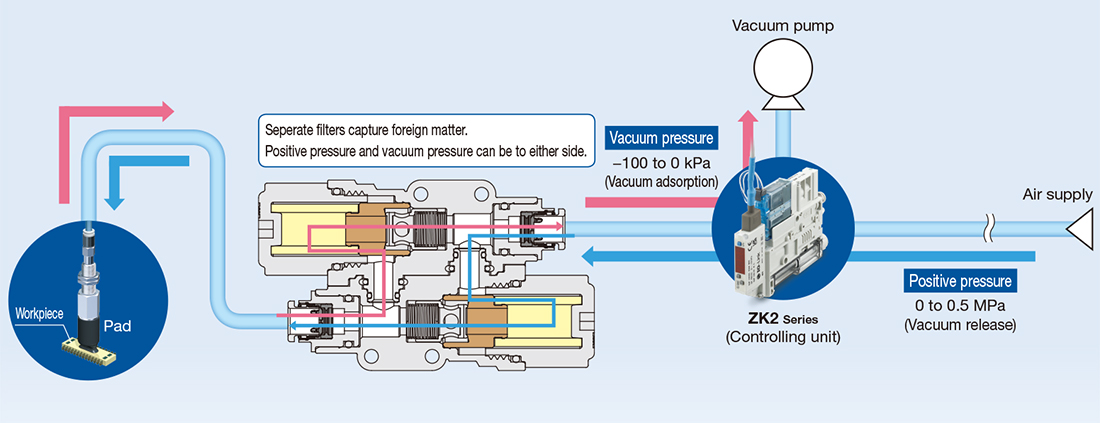

Able to capture foreign matter in both vacuum adsorption and vacuum release directions.
Prevents foreign matter from scattering again

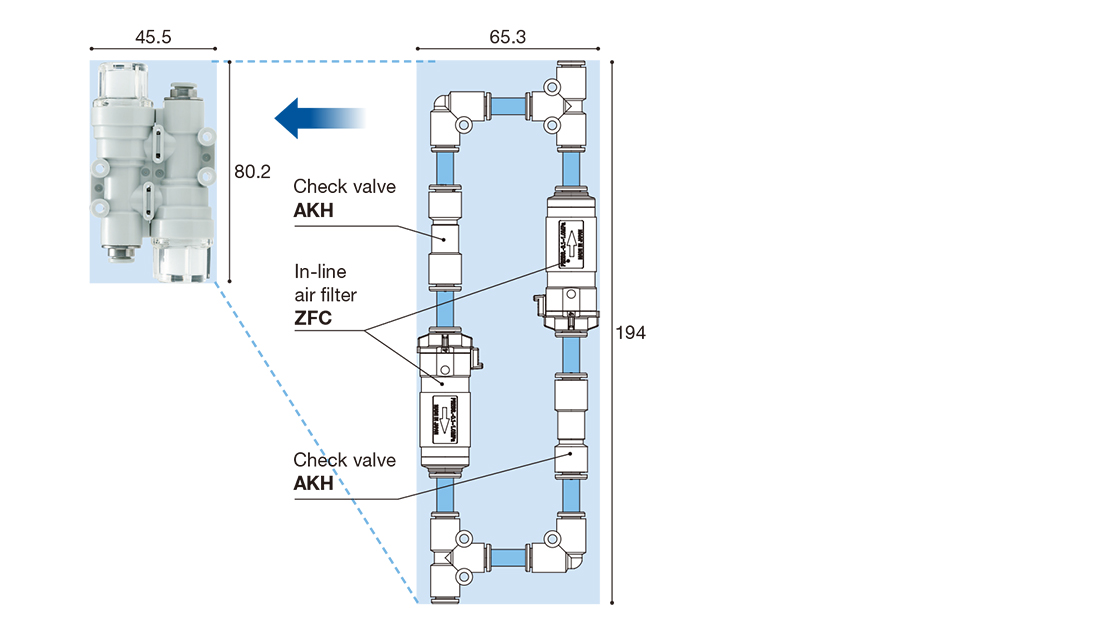

Space saving

Reduced piping work and number of parts
Installation area: 41% reduction
