Wireless System: DeviceNet Compatible Products
Wireless System EXW1/EX600-W
-
?Analog input has been added to the compact type EXW1 Series. [New]
?Noise resistance
Uses the 2.4 GHz ISM frequency band
Frequency hopping: Every 2 ms (Fastest)
?Communication cables not required
Reduced wiring work, space, and cost
Minimized disconnection risk
?Provides communication stability in FA environments
?Compact and lightweight (EXW1)
Volume: Approx. 81% reduction, Weight: Approx. 76% reduction
?Modular connection is possible. (EX600-W)
?IO-Link Master
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Wireless System EXW1/EX600-W
Manual
Series View search result EXW1 View search result EX600-W View search result Wireless System EXW1/EX600-W
DoC
Series View search result EXW1 View search result EX600-W View search result
Industrial IoT Cybersecurity Glossary of Fieldbus Terms Green Procurement (RoHS)
| Series | Enclosure | Communication protocol | Applicable valve |
|---|---|---|---|
| EXW1 | IP20/IP67 | DeviceNet? CC-Link EtherNet/IP? EtherCAT? PROFINET OPC UA | JSY1000, 3000, 5000 |
| EX600-W | IP67 equivalent | EtherNet/IP? PROFINET | SY3000，5000，7000（Plug-in） SV1000，2000，3000 S0700（IP40） VQC1000，2000，4000，5000 |
Features
Wireless System
Analog input has been added to the compact type EXW1 Series. New
Compact Type EXW1 Series
Modular Type EX600-W Series
Provides communication stability in FA environments
Even if multiple wireless bases are in use in the same communication area, each wireless base is able to effectively communicate with the remotes they are paired with.
Each wireless base is able to identify its wireless remotes by their P.I.D.
? P.I.D.: Product I.D.Provides communication stability in FA environments
Antenna support
Frequency hopping/Event communication system
Frequency hopping
A stable wireless environment is established using an original protocol which is not affected by interference. Interference from other wireless equipment is reduced.
Event communication system
Wireless communication is performed only when there is a variation in the information, thereby suppressing the frequency of radio wave output in wireless communication and reducing interference with other wireless devices.Frequency hopping/Event communication system
F.C.S. (Frequency channel select) function supported
F.C.S. （Frequency Channel Select）対応
This is a function that allows for the selection of the frequency channel to be hopped to via frequency hopping. When the frequency used by wireless LANs, AGVs, or other wireless devices is known, selecting a different frequency channel will allow for hopping only to the selected frequency channel, thereby reducing communication collisions with other wireless devices and stabilizing communication.
? The number of selectable frequency channels varies depending on the country of use.F.C.S. (Frequency channel select) function supported
Frequency band used
Uses the 2.4 GHz ISM frequency bandFrequency band used
High security using encryption
Unauthorized access from outside is prevented by using data encryption.
Remote high-speed connection
Product diagnosis
Setting software (IO Configurator)

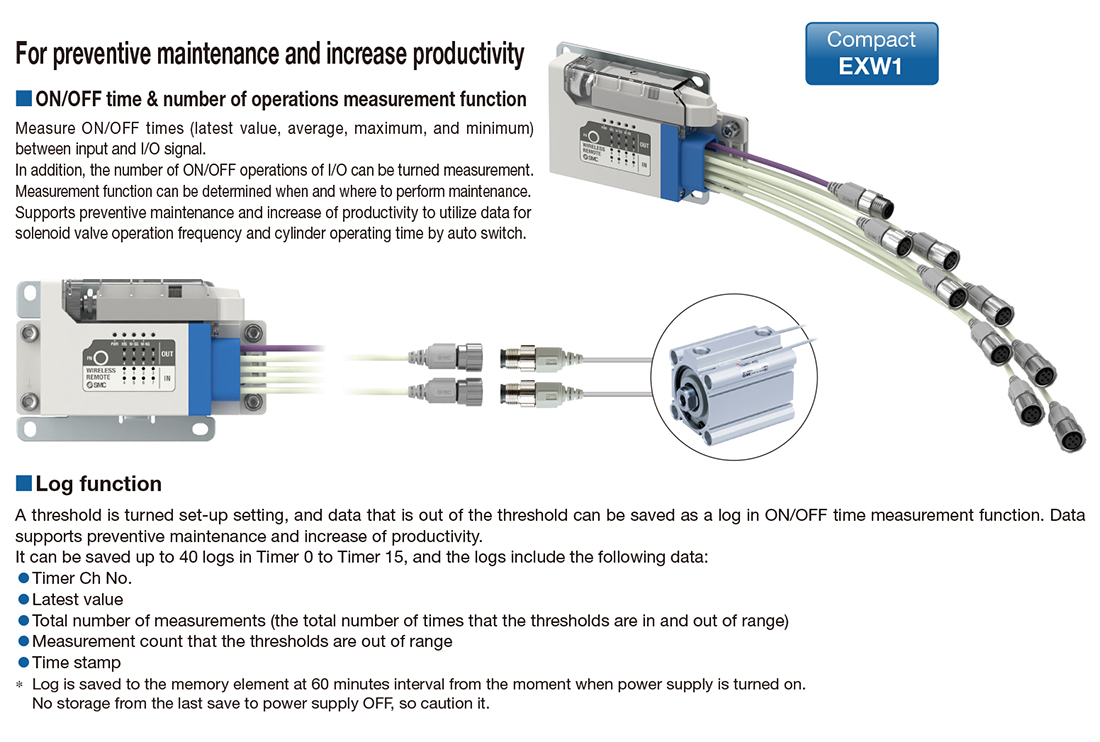

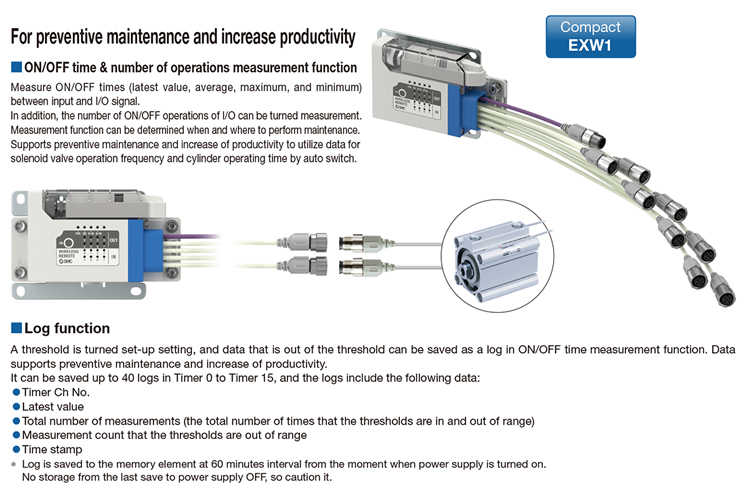

Logging function
The following information is saved in the internal memory of the product.
It can be downloaded and visualized from the web function or the setting software (IO Configurator).
The compact type EXW1 and modular type EX600-W can be used in combination.?
? When they are mixed, the communication speed/response time is limited to the EX600-W’s specifications. (Refer to the system configuration examples.)
For wireless digital, analog, and IO-Link component connection
For wireless air management system connection?
? For the compact type EXW1 base only
Configuration Examples for the Compact Type EXW1 Series IO-Link Specification
System Configuration Examples
Wiring material cost and installation time can be reduced.?
? For the EX600-W modular type
Interchangeability maintained
Application Examples
